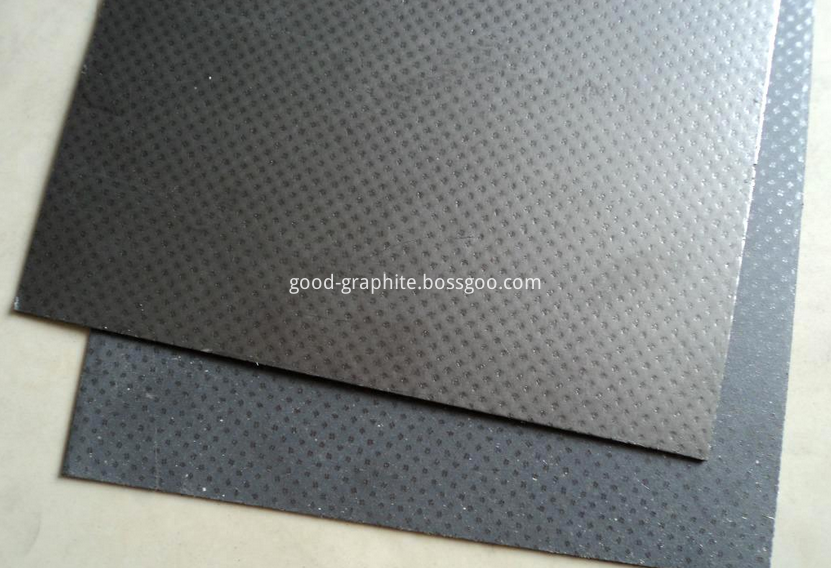

Graphite Plating Composite Panel

Product Description

Specifications:

1)Graphite Plating Composite Panel made by graphite and tinplate or 304/316

2)thickness: 0.5-4.5mm

3)packing: carton, wooden case, etc
Graphite Plating Composite Plate

USAGE: making cylinder gaskets of compressors & internalcombustion engines. making various reinforced graphite gaskets, etc.

Graphite Plating Composite Plate

MAIN PROPERTIES: Graphite Plating Composite Panel is made by pressing mechanically or sticking Flexible Graphite sheets together with metal plate & its main properties are as follows.
Resist all chemical substances except strong oxidizers.
Excellent heat stability, be used for a long period under a temperature -200~1000.
Good compressibility and resiliency, low creep relaxation, strong compensation capacity for uneven sealing surface & long working life.


Reinforced composite

Material

Din52913
Stabillty Compressive stress(N/mm2)

Temperature

ASRMF36A -66 Compressibility%

ASEMF36A-66 Recovery%

Dn3535 Gas permeability(cm2/min)

In oxidzing Media

In nonoxidizing Media

Tanged Carbon steel Sheet
(Tickness 0.20-0.25mm)

≥ 48

-10-450

-10-550

30-35

15-20

≤ 0.8

Ss304,316Tanged stainless steel Sheet
(Tickness 0.1mm)

≥ 48

-240-450

-200-560 (Ss304)
-200-870 (Ss316)

30-40

15-30

≤ 0.8

Ss304 ,316 Stainless steel flat sheet
(Tickness 0.1mm)

≥ 45

-240-450

-200-560 (Ss304)
-220-870 (Ss316)

40-50

10-15

≤ 0.4

Ss304 ,316 stainless steel mesh

≥ 40

-240-450

-200-560 (Ss304)
-220-870 (Ss316)

30-35

15-20

≤ 1.0

Mylar reinforced
(Tickness 0.05mm)

≥ 40

-240-450

-200-1650

40-50

10-15

≤ 0.4


Contact us if you need more details on Graphite Plating Panel. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Graphite Plating Composite Panel、Composite Graphite Plating Panel. If these products fail to match your need, please contact us and we would like to provide relevant information.
